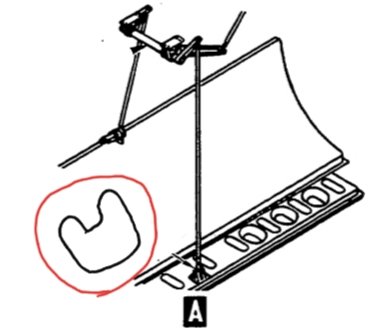

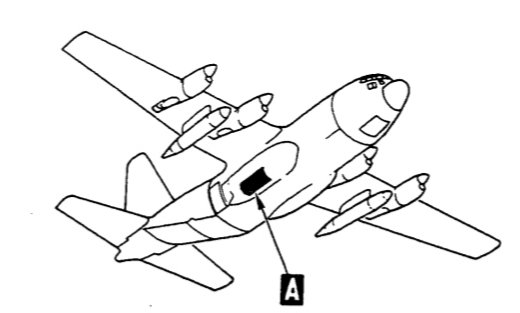

Hye-nam, PARK Posted October 12, 2019 Share Posted October 12, 2019 Hello~ everyone. Do you know there are rabbit faces in C-130H? Inside both main landing gear fairing door, there is groove and It is like rabbit face. Somebody know the reason? Thank you. Quote Link to comment Share on other sites More sharing options...
Rayj Posted October 13, 2019 Share Posted October 13, 2019 Playboy Bunny Quote Link to comment Share on other sites More sharing options...
JON1980 Posted February 25, 2020 Share Posted February 25, 2020 I have the same question Quote Link to comment Share on other sites More sharing options...
jhjbd Posted March 5, 2020 Share Posted March 5, 2020 Hello: That design of the door is because of the space the wheel need to go up and down without get stuck. If you go to the emergency and abnormal procedures section of the flight manual, Main Landing gear Extension After Normal and Emergency System Failure, one note say this: Extend the Aft strut firt. The main landing gear doors are opened by a mechanical connection to the aft strut, and damage to the doors could result if the forward strut is extended firt. If the door don't have that shape the wheel would get stuck. 1 2 Quote Link to comment Share on other sites More sharing options...
Hye-nam, PARK Posted April 29, 2020 Author Share Posted April 29, 2020 On 3/5/2020 at 9:17 AM, jhjbd said: Hello: That design of the door is because of the space the wheel need to go up and down without get stuck. If you go to the emergency and abnormal procedures section of the flight manual, Main Landing gear Extension After Normal and Emergency System Failure, one note say this: Extend the Aft strut firt. The main landing gear doors are opened by a mechanical connection to the aft strut, and damage to the doors could result if the forward strut is extended firt. If the door don't have that shape the wheel would get stuck. wow~!! Thank you very much~!! Quote Link to comment Share on other sites More sharing options...
