wvrailfan

Paint and Lettering Diagram

Recommended Posts

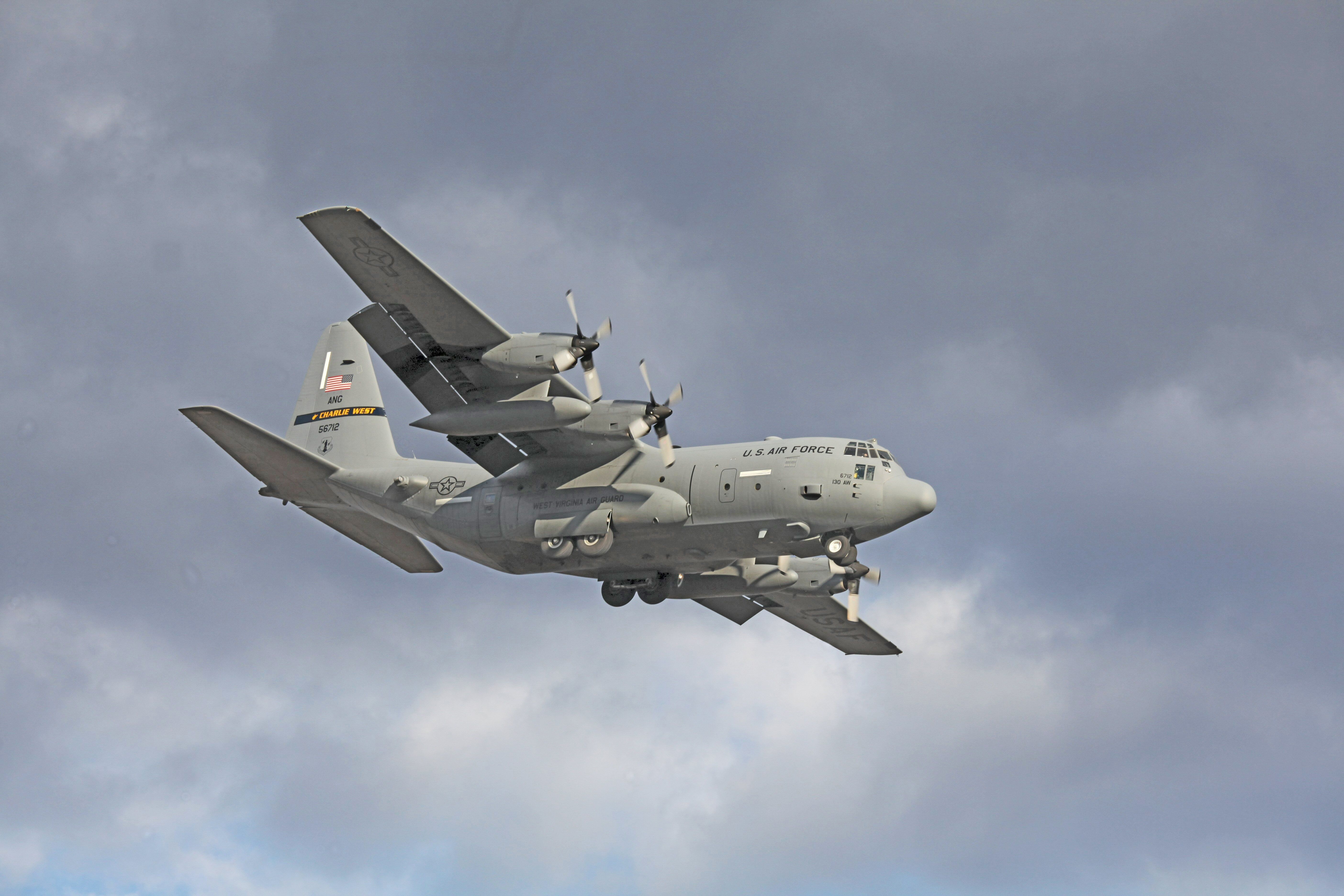

I am going to be painting and lettering a radio control C-130H model in the near future.  I plan to replicate a WVANG craft.  I have some photos of the plane I want to model, but I was wondering if there is a source, short of trying to contact someone at the Guard or AF, for paint and lettering diagrams that show placement and size of the various lettering and markings on the plane?



Thanks for any help



Jim


Share this post


Link to post
Share on other sites

I have a very old MAC Manual 66-4 dated 17 November 1965 titled Aircraft Markings and Insignia.  I don't know if it's still published or not.

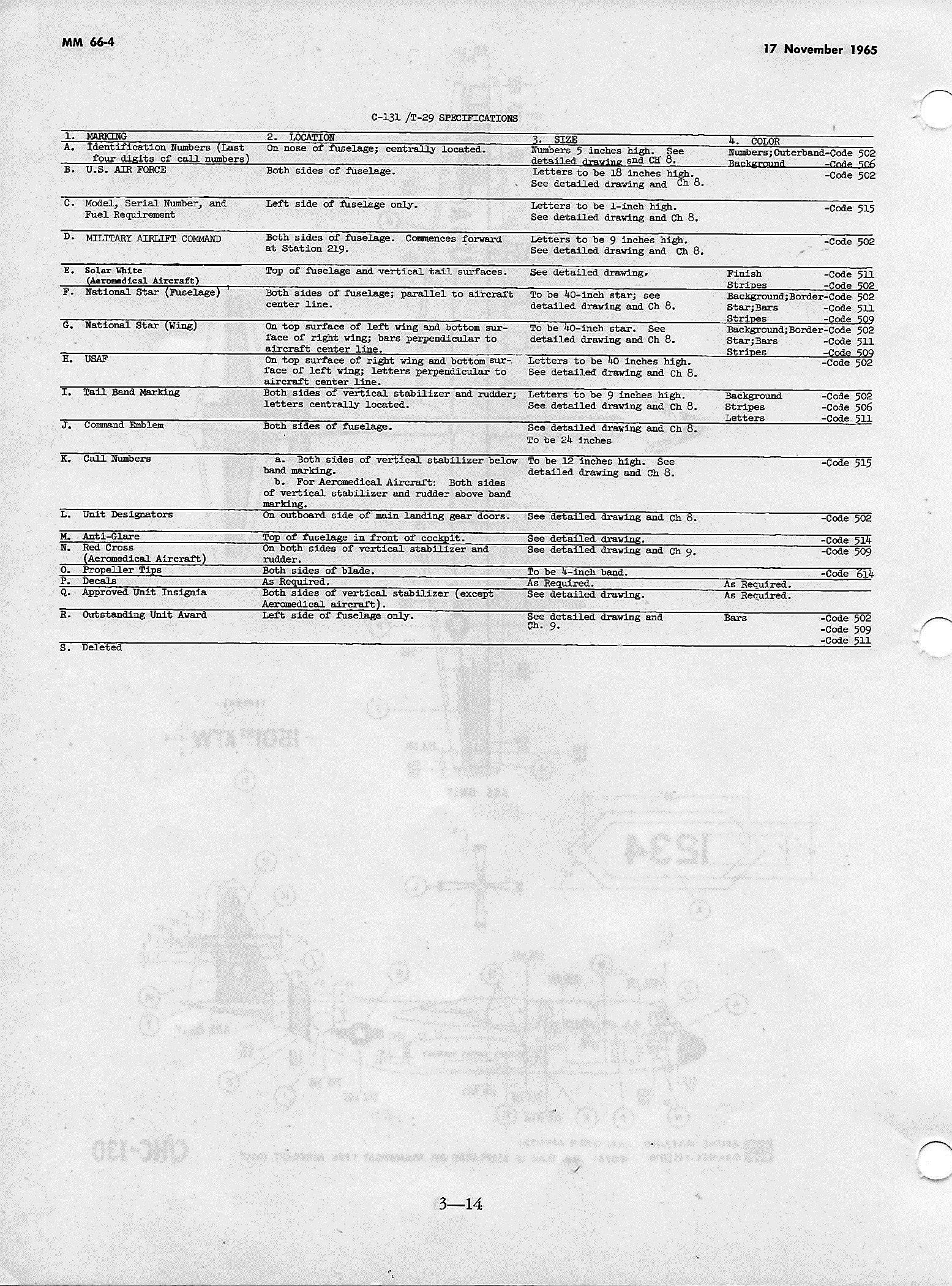

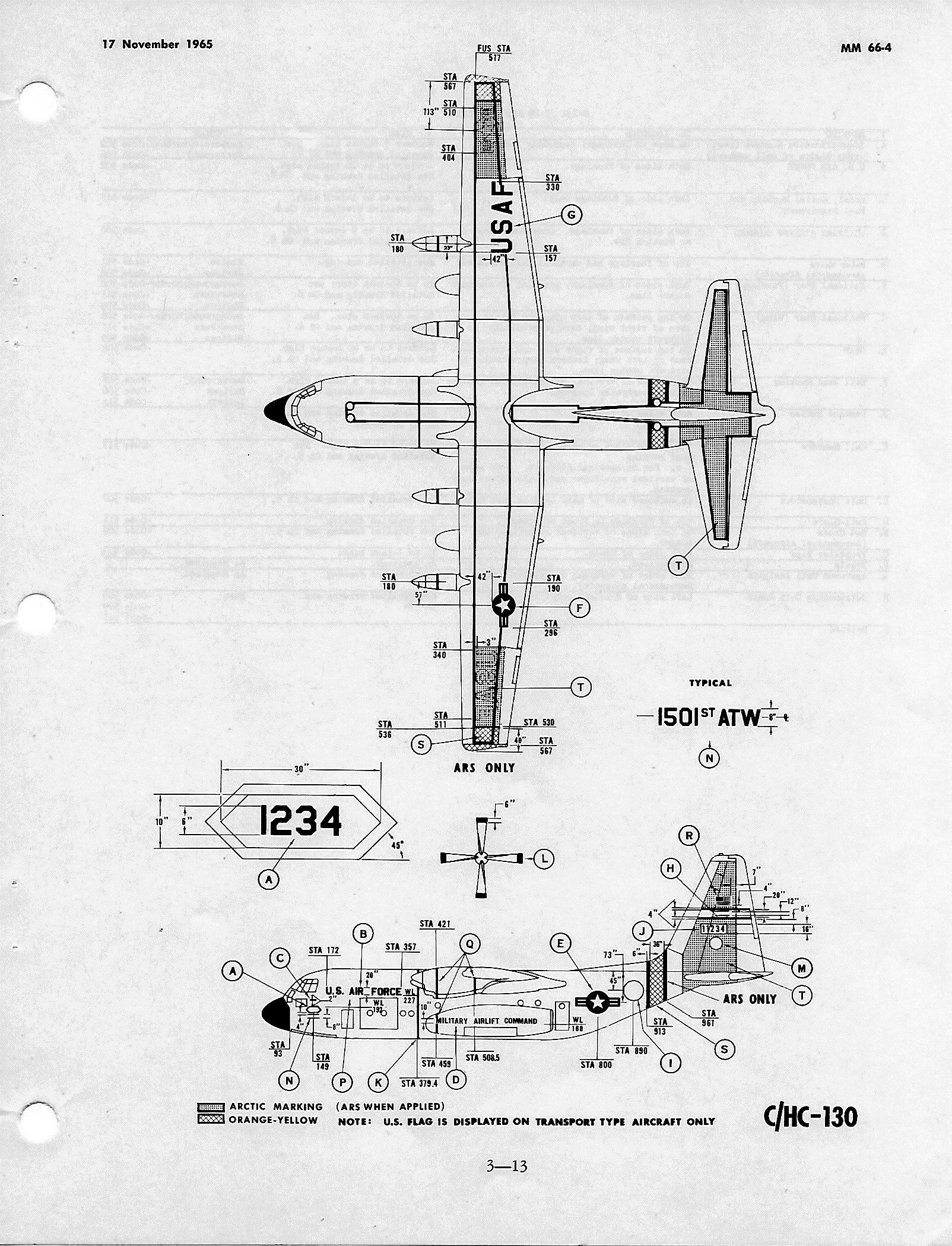

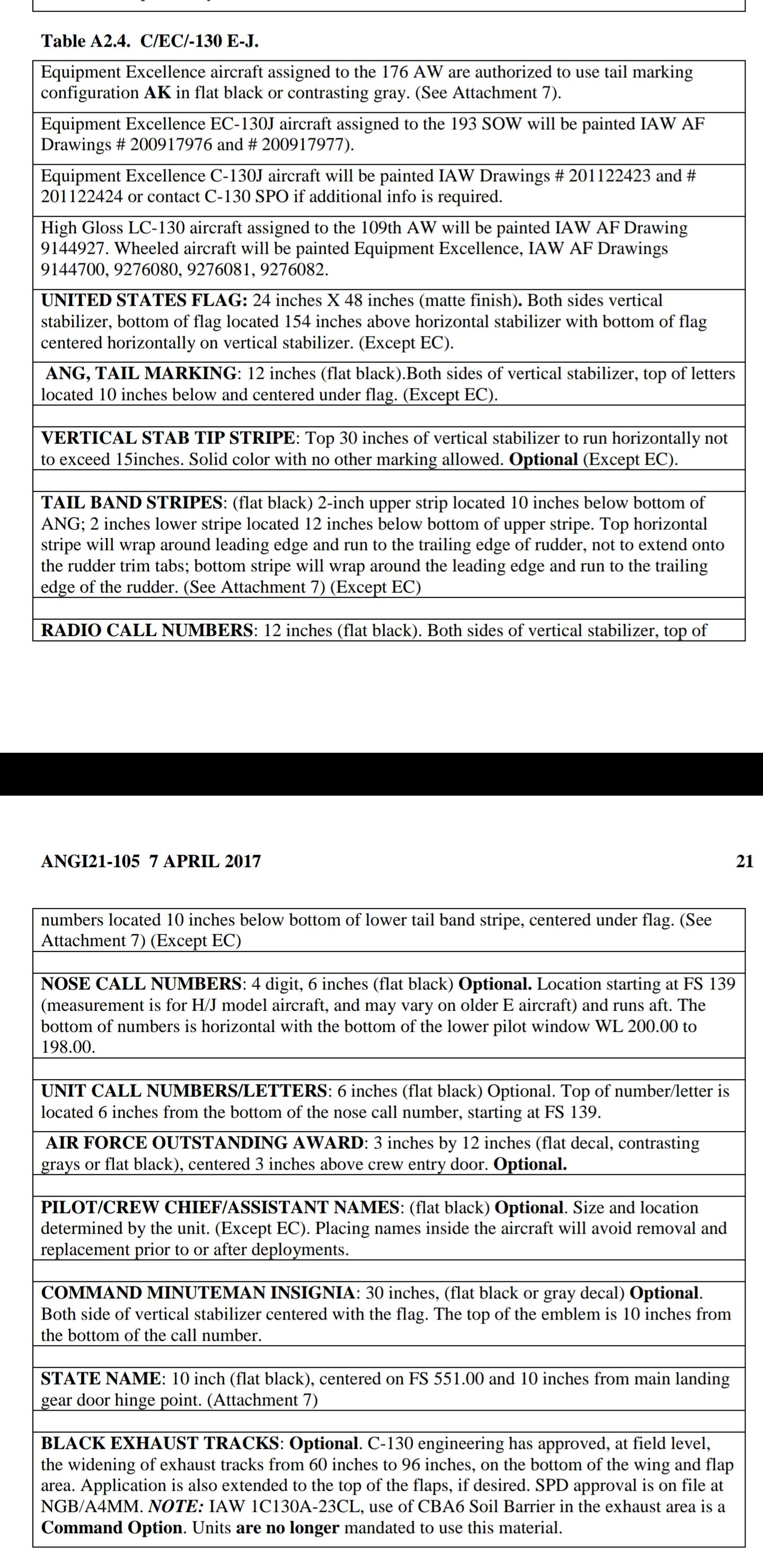

I scanned a couple of pages from it -- maybe they will help.

Don R.
