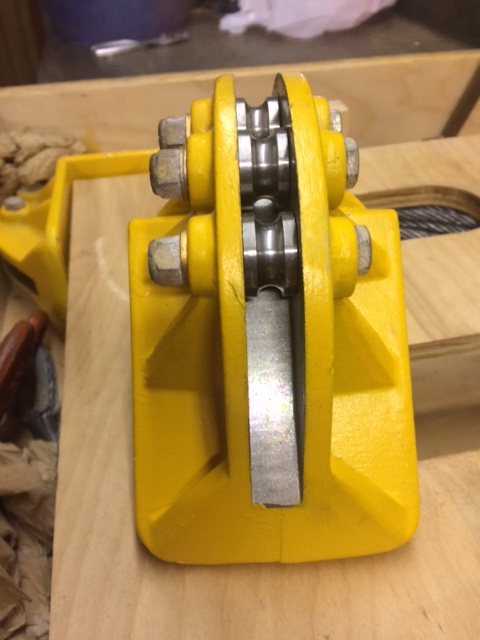

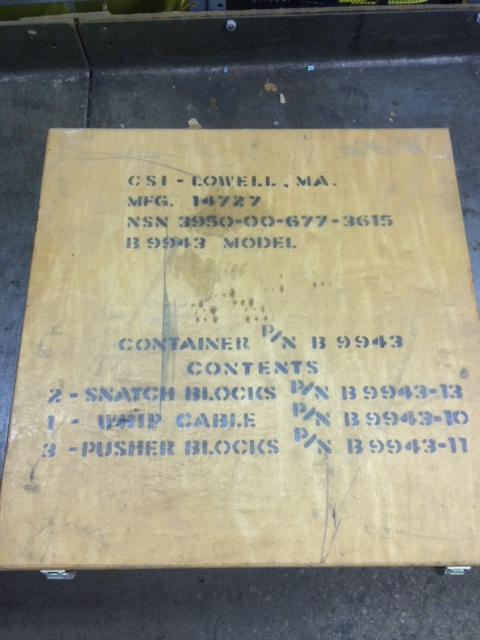

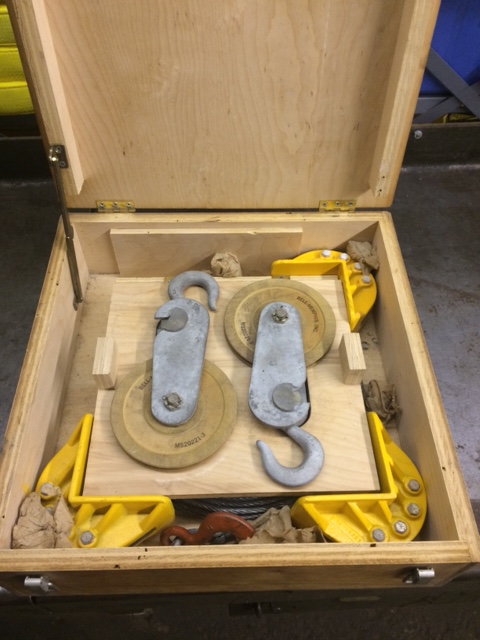

Whiteowl Posted March 9, 2018 Share Posted March 9, 2018 I have come across this kit that I can't find any information on. When I research the military part numbers it shows as being for use on some of the C130 variants. This is basically just a cable and pulley kit but there are some things that raise my curiosity factor. It is in a very nicely made box, It has steel cable with hooks, It has three heavy duty roller brackets that appear to be used to pass the cable around corners. But the two cable blocks appear to be very light duty. The hooks are lightweight and the pulleys appear to be made of a phenolic material so not much load capacity there. I asked at the local foresty service flight office and they thought it was used as an auxiliary cable for winching in pallets. And it certainly might be. But the light duty pulleys seemed strange and why have three corner roller brackets. So I'm curious if anyone knows for sure what this is for. Kit # 3950-00-677-3615 / cs3950-0016 / 41850 Number on pulley is MS20221-3 Pictures below. Quote Link to comment Share on other sites More sharing options...
Dutch Posted March 9, 2018 Share Posted March 9, 2018 Floor winch Used to load the aircraft. Quote Link to comment Share on other sites More sharing options...
BRlang Posted March 10, 2018 Share Posted March 10, 2018 If there was no electric wench on board you could use this kit by running a cable out the crew door and attached to a vehicle and use the block and pulls to attach to the floor. The end of the cable in the aircraft is attached to the load being winched aboard. the vehicle drives forward and pulls the load on board. The pullys only re direct the pull of the cable. I am pulling this from my Loadmaster C-130 school At Pope.... Thats been a few years ago but I think I'm close. All my aircraft had electric winches. I never had to winch a load.. Quote Link to comment Share on other sites More sharing options...
rc johnson Posted March 10, 2018 Share Posted March 10, 2018 Here is what I found. By the way there weren't any winches on any 130 that I was on, thankfully. http://www.cunicocorp.com/aircraft-cargo-winch.htm Quote Link to comment Share on other sites More sharing options...
Dutch Posted March 10, 2018 Share Posted March 10, 2018 You did if you were in the 317th TCW. They were put on for different missions, all over Europe and the Middle East. Quote Link to comment Share on other sites More sharing options...
Spectre623 Posted March 10, 2018 Share Posted March 10, 2018 Good job of digging up that info RC. I looked up the FSN but got a bunch of mash mash info. We had a couple of weird winch kits in my day, one was for removing the aft cargo door in the field. Bill Quote Link to comment Share on other sites More sharing options...
GVS Posted March 10, 2018 Share Posted March 10, 2018 Dutch got it right --- again.The work order came down from Maint. control to the 780 shop.They droped the winch off at the acft.I don't remember the capacity but it could pull one hell of a load.Slow but powerful.The kit shown in the O/P was handy sometimes but wasn't as heavy duty as the big yellow beast. Quote Link to comment Share on other sites More sharing options...
Whiteowl Posted March 11, 2018 Author Share Posted March 11, 2018 great info. Thanks for the research and comments. It didn't make any sense to me until I saw the diagrams. greatly appreciated. Quote Link to comment Share on other sites More sharing options...
tinyclark Posted March 19, 2018 Share Posted March 19, 2018 Does this go back to the Overhead Delivery System days? Quote Link to comment Share on other sites More sharing options...
Dutch Posted March 19, 2018 Share Posted March 19, 2018 2 hours ago, tinyclark said: Does this go back to the Overhead Delivery System days? before we used them on the A-models in 317th TAW prior to 1961 and on. Quote Link to comment Share on other sites More sharing options...
tinyclark Posted March 27, 2018 Share Posted March 27, 2018 Thanks! Quote Link to comment Share on other sites More sharing options...
